Some of the many wire, hose
and tube routing and bundling products we stock include:

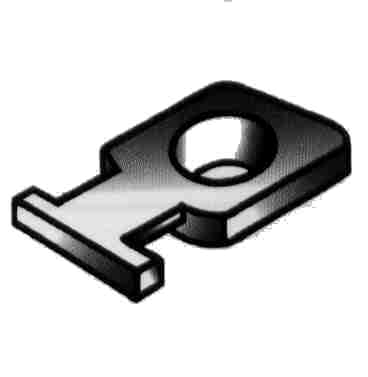

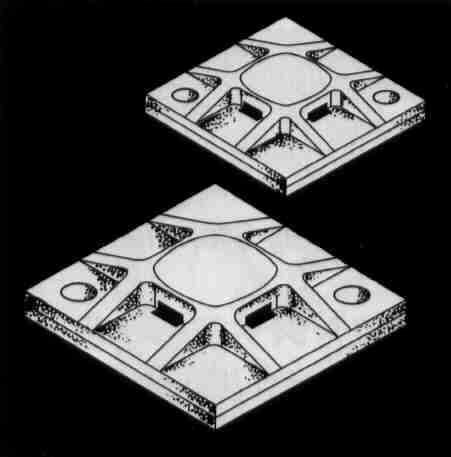

Cable Tie Mounts - for attaching cable ties and wire bundles to almost any surface. These are stocked in screw mount styles, adhesive mount styles and push-in mount styles. Over 25 sizes and styles.

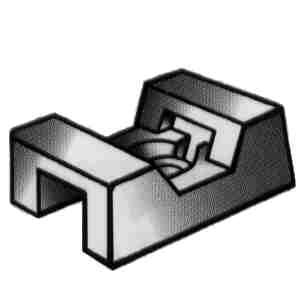

Cable Tie Saddles & Cradles
-
for mounting wire bundles above the surface. Cradles have center screw holes for mounting. Low profile mounts are also available where installation space is limited.

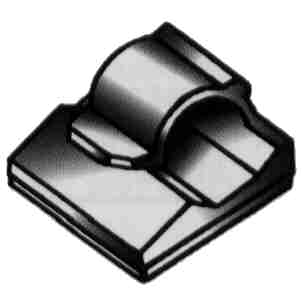

Adhesive backed cord clips - for routing and securing wires and cord bundles. Nylon memory retains shape of "holdover" ensuring that cables stay in place but can be readily removed or rerouted when necessary.
Nylon Twist-Lock Ties- reusable! - one twist of your fingers and wires are bundled securely - for bundles from 1/4" up to 3/4" in diameter

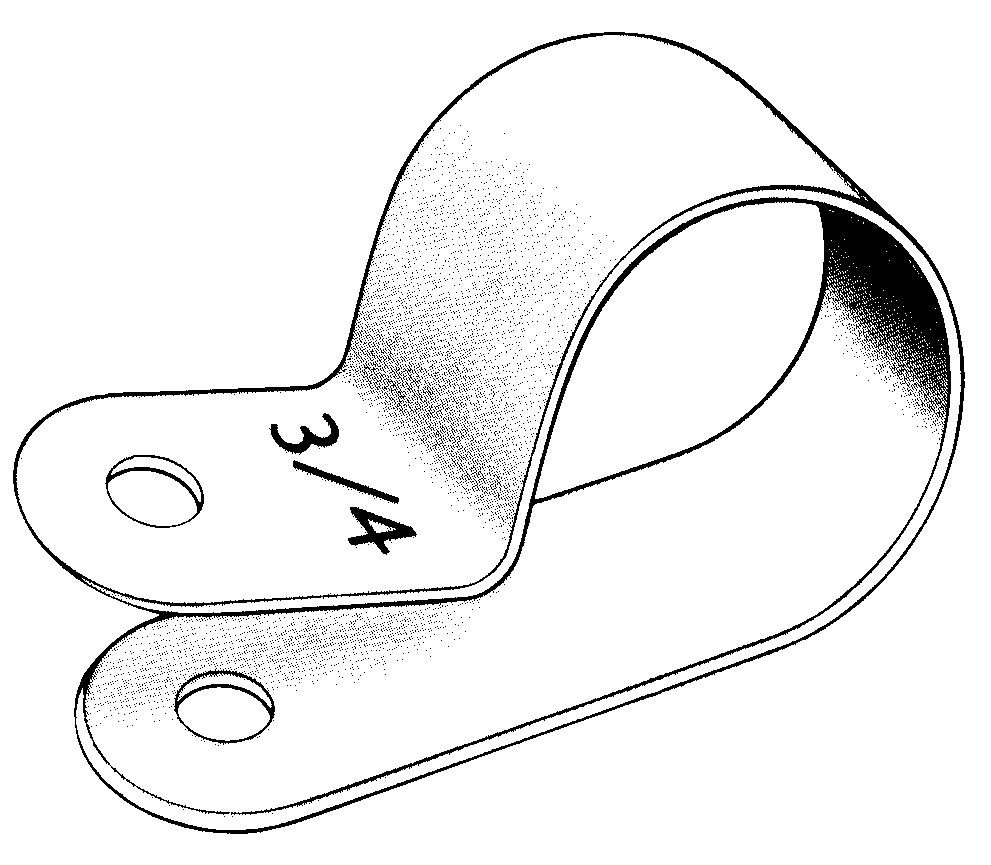

Nylon Clamps
- For routing and securing wire bundles - also known as "P" or "loom" clamps; secured with either a #8 or #10 screw or rivet. Available in sizes from 1/8" up to 1-1/2" I.D., in 3/8" and 1/2" widths. These are also stocked in NAS 1397 series - natural and black nylon (some colors available).

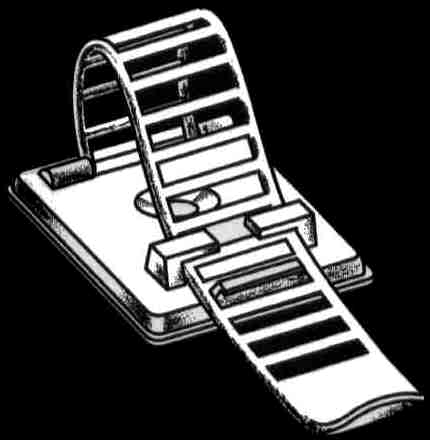

Adjustable Cable Clamps
- based on an adhesive mount, these ladder style clamps are adjustable for changing wire bundle demands.
Nylon Locking Hose Clamps
- Install and squeeze - your hose or tubing is clamped! Adjustable and
reusable as well...available in UV resistant black
Polyvinyl Dipped Steel Clamps
- stocked in 1/2", 3/4" and 1" widths, for internal diameters from 1/4" up to 4". Clamps are mounted with either a 1/4", 3/8" or 1/2" bolt, depending on the clamp series. These one-piece clamps will hold hose, cable, tubing or pipe securely under the most demanding conditions. The integral PVC coating cushions and protects from chafing and vibration, and will not degrade in petroleum environments the way neoprene cushioned products can.
We also stock assorted nylon and poly press clips, flex clips, half clamps, "U" clamps and hundreds of other wire and cable management products.
To download catalog sections containing complete information on these or any other of our products, please see the
ICG Catalog page.
For more information, please
e-mail us at
sales@icgcorporation.com
or fax us at 425.315.0201.
When making inquiries, please include the part number (or all
relevant dimensions and/or specifications) as well as quantities desired. |
